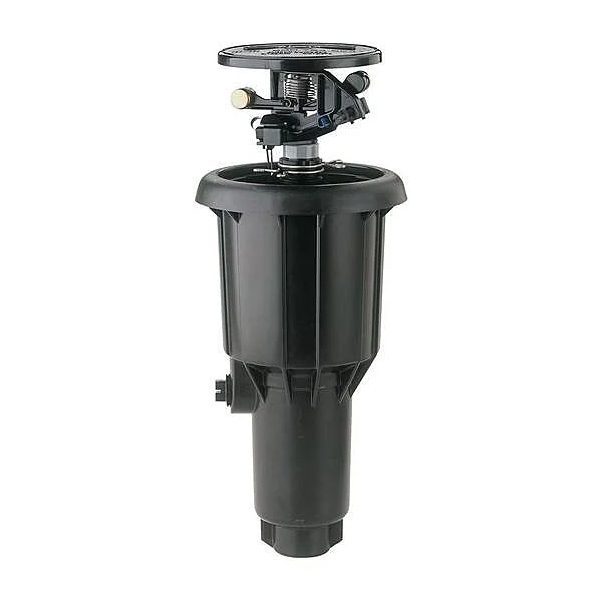

Rainbird MaxiPaw 2045-A

In Stock

Full- or Part-Circle Impact Rotor Pop-Up Sprinklers

The Maxi-Paw’s powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution.

Low-pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications. Its key features are as follows,

  • Proven impact drive.
  • Straight-through flow for superior performance in dirty water.
  • Five interchangeable, color-coded MPR nozzles with standard trajectory.
  • Two interchangeable low-angle (LA) nozzles.
  • Easy to adjust, easy to service.
  • No tools are required to change nozzles.
  • Heavy-duty plastic case with sturdy reinforced ribbed design.
  • Double-weighted arm for slower rotation and increased distance of throw.
  • Self-flushing inner trip with an improved inner trip lever.
  • Powerful reverse action.
  • Adjustable arm spring for low-pressure and low-gallonage operation.
  • Energy efficient, low pressure, and low-gallonage operation.
  • 360° Full-circle OR arc adjustable from 20° to 340°.
  • Precision Jet tube (PJ™) minimizes side splash.
  • Hooded bearing for longer life.
  • Distance control diffuser pin.
  • Multi-function, pressure-activated wiper seal.
  • The inlet filter screen and pressure-activated wiper seal protect the internal assembly from debris to ensure positive pop-up and retraction.
  • Combination 1/2″ (15/21) or 3/4″ (20/27) bottom inlet.
  • Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
  • FP trip for full- or part-circle operation.
  • Side or combination bottom inlet for design flexibility.
  • Side inlet installation is not recommended in freezing climates.
  • Serviceable through the top of the case.
  • Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
  • Optional nonpotable cover.
  • Three-year trade warranty.
Category:

Description

Precipitation Rate:

  • 0.28 to 1.17 inches per hour (7 to 30 mm/h)

Radius:

  • 22 to 45 feet (6,7 to 13,7 m)

Radius with Radius Reduction Screw:

  • 18 ft (5,4 m)

Pressure:

  • 25 to 60 psi (1,7 to 4,1 Bars)

Flow:

  • 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
  • Combination 1/2″ (15/21) or 3/4″ (20/27) FPT bottom inlet
    1/2″ (15/21) FPT side inlet

Nozzles:

  • 06-red; 07-black; 08-blue; 10-yellow; 12-beige

Low angle (LA) nozzles:

  • 07 LA-black; 10 LA-yellow
  • Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles.
  • LA nozzle outlet trajectory is 11°.

Available Nozzles:

  • Standard trajectory 06, 07, 08, 10, 12
  • Low Angle 07LA, 10LA

Dimensions:

  • Overall height: 9 3/10″ (23,6 cm)
  • Pop-up height: 3″ (7,6 cm)
  • Exposed surface diameter: 5″ (12,7 cm)
